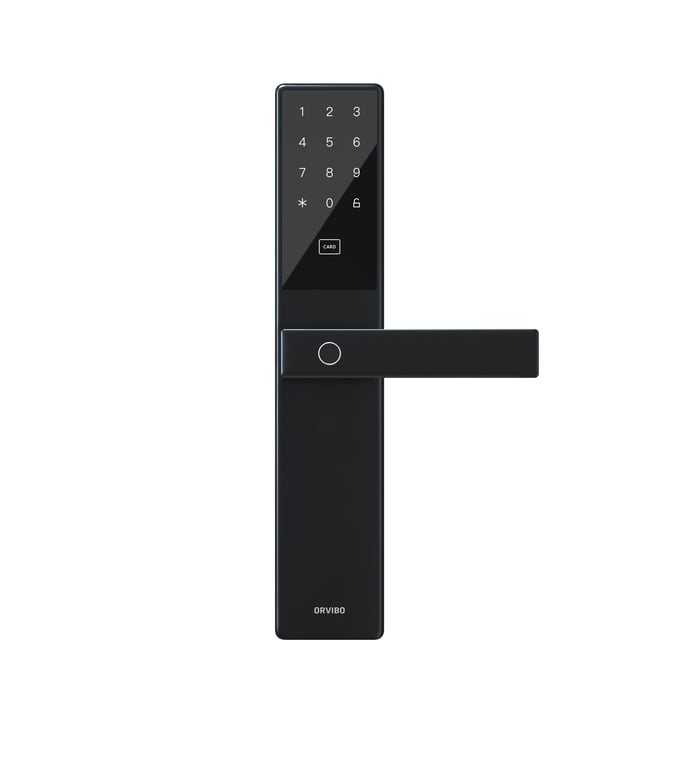

C1
Connect the door lock through the app. When someone opens or closes the door, the C1 door lock will automatically link with other smart home devices to achieve the full house linkage in a different scene. It can match most standard-sized wooden doors, security doors, etc., with a standard hole distance of 23.5cm, and a single wire connection between the inner and outer lock bodies, easy to install.
Product specifications
352mm * 70mm * 67mm (panel)
Power parameter
DC 3V
Battery type
4 AA batteries, 2 cells/group
Working current
<100mA
Fingerprint recognition type
biometrics (Swedish FPC fingerprint chip）
Fingerprint rejection rate
<0.1%
Fingerprint recognition rate
<0.0001%
User capacity
25 users (each user supports 4 fingerprints and 2 sets of passwords and 2 sets of cards)
Wireless module
Wi-Fi
Unlocking method
Fingerprint, password, card, mechanical key, APP, NFC
Intelligent alarm
Anti-theft, crisis unlock, low battery
Working temperature
-20 ℃ - 50 ℃
Door lock material
Aluminum alloy + ABS + tempered glass
